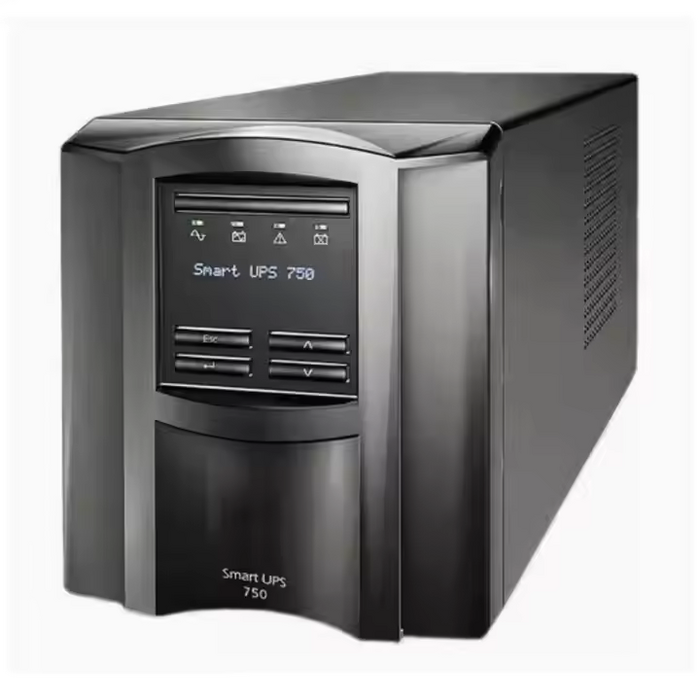

APC Smart-UPS SMT750I

Description

Product Description

The APC Smart-UPS SMT750I is a high-performance uninterruptible power supply (UPS) designed to provide dependable power backup and protection for critical devices like servers, storage systems, and network equipment. With a capacity of 750VA/500W, this UPS is ideal for small business environments or IT setups requiring clean and stable power.

Key Features:

• Capacity: 750VA/500W, ideal for servers, storage, network devices, and point-of-sale systems.
• Pure sine wave output: Provides clean and consistent power, suitable for sensitive electronics.
• Automatic Voltage Regulation (AVR): Corrects voltage fluctuations without using the battery, extending battery life.
• LCD Display: Offers real-time information on UPS status, power conditions, and diagnostics.
• SmartSlot: allows for optional network management cards to enable remote monitoring and control.
• Energy Efficiency: Features a green mode for high operational efficiency, reducing energy consumption.
• Battery Management: Intelligent battery management ensures optimal performance and extended battery life.

Technical Specifications:

• Input Voltage: 230V AC
• Input Connection: IEC 320 C14
• Output Voltage: 230V AC
• Output Connections: 6 IEC C13 outlets
• Battery Type: Sealed lead-acid, user-replaceable
• Battery Recharge Time: 3 hours
• Runtime:
  • At full load (500W): Approximately 4 minutes
  • At half load (250W): Approximately 12 minutes
• Surge Energy Rating: 459 Joules
• Dimensions: 21.9 cm (H) x 17.1 cm (W) x 43.9 cm (D)
• Weight: 13.2 kg

Input Specifications:

• Voltage: 230V AC
• Input Frequency: 50/60 Hz ± 3 Hz (auto-sensing)
• Input Connection: IEC 320 C14
• Input Voltage Range for Main Operations: 180V to 287V
• Cord Length: 1.83 meters

Output Specifications:

• Voltage: 230V AC
• Output Frequency: 50/60 Hz ± 0.1 Hz (sync to mains)
• Output Connections: 6 IEC C13 outlets
• Output Waveform: Pure sine wave
• Maximum Configurable Power: 500W
• Transfer Time: 2–4 milliseconds typical

Physical Specifications:

• Dimensions: 21.9 cm (H) x 17.1 cm (W) x 43.9 cm (D)
• Weight: 13.2 kg
• Color: Black
• Mounting: Tower form factor

Environmental Specifications:

• Operating Temperature: 0°C to 40°C
• Storage Temperature: -15°C to 45°C
• Operating Humidity: 0% to 95% (non-condensing)
• Storage Humidity: 0% to 95% (non-condensing)
• Operating Altitude: Up to 3,000 meters
• Storage Altitude: Up to 15,000 meters
• Acoustic Noise Level: 41 dBA (at 1 meter from the surface of the device)
